- Door Station/System Parameters
- Operation SystemEmbedded Linux operation system
- Flash
32 M
RAM
256 M
Door Station/Video Parameters
- Supplement LightIR supplement
- Resolution
Main stream : 1920 × 1080
Sub stream : 640 × 480
- Lens1
- WDRSupport
- FOVHorizontal: 124° Vertical: 75°
- Video Compression StandardH.264
- Door Station/Audio Parameters
- Audio InputBuilt-in omnidirectional microphone
- Audio OutputBuilt-in loudspeaker (more than 80 dB within 30 cm)
- Volume AdjustmentAdjustable
- Audio Compression StandardG.711 U, G.711 A
- Audio Compression Rate64 Kbps
- Audio Intercom
Two-way audio communication
Audio QualityNoise suppression and echo cancellation
- Door Station/Capacity Parameters
- User Capacity2000
- Door Station/Network Parameters
- Network ProtocolTCP/IP, RTSP
- Wi-FiWi-Fi 802.11 b/g/n
- Wired Network10/100 Mbps self-adaptive Ethernet
- 3G/4G/
- Bluetooth/
- Door Station/Device Interfaces
- Network Interface1
- RS-4852
- Wiegand0
- Lock Control2
- Exit Button2 Max.
- Door Contact2
- Alarm Input4
- Alarm Output0
- Power Interface1
- TAMPER1
- USB Interface0
- TF Card1 (reserved)
- Door Station/General
- Button1
- Indicator3
- Power Consumption
＜ 10 W
- Power Supply
Standard PoE/12 VDC;IEEE802.3af, standard PoE
12 VDC
- Working Temperature-40° C to 53° C(-40° F to 127.4° F)
- Working Humidity10% to 95%
- Dimension174 mm × 91 mm × 29 mm
- InstallationSurface mounting
- Application EnvironmentOutdoor
- Protection Level
IP65, IK08
Weight380 g
- Indoor Station/System Parameters
- Operation SystemEmbedded Linux operation system
- Memory128 MB
- Flash32 MB
- Indoor Station/Display Parameters
- Display Screen7-inch colorful TFT screen
- Display Resolution1024 × 600
- Operation MethodCapacitive touch screen
- Indoor Station/Audio Parameters
- Audio InputBuilt-in omnidirectional microphone
- Audio OutputBuilt-in loudspeaker
- Audio Quality
Noise suppression and echo cancellation
- Audio Compression Standard
G.711 U
- Audio Compression Rate
64 Kbps
- Indoor Station/Network Parameters
- Network Interface1 RJ-45 10/100 Mbps self-adaptive
- Wired Network
10/100 Mbps self-adaptive
- Wireless Network
Wi-Fi 802.11 b/g/n
- Protocol
TCP/IP, SIP, RTSP
- Indoor Station/Device Interfaces
- RS-4851
- Alarm Input8-ch alarm inputs
- Relay Output2
- TF CardMax to 32 G, SD 2.0 or lower version
- Indoor Station/General
- Power Consumption
≤ 6 W
Power SupplyStandard PoE,12VDC
- Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (L X W X H)
200 mm × 140 mm × 15.1 mm (7.9″ ×
5.5 × 0.6\”)”
hikvision, Intercom

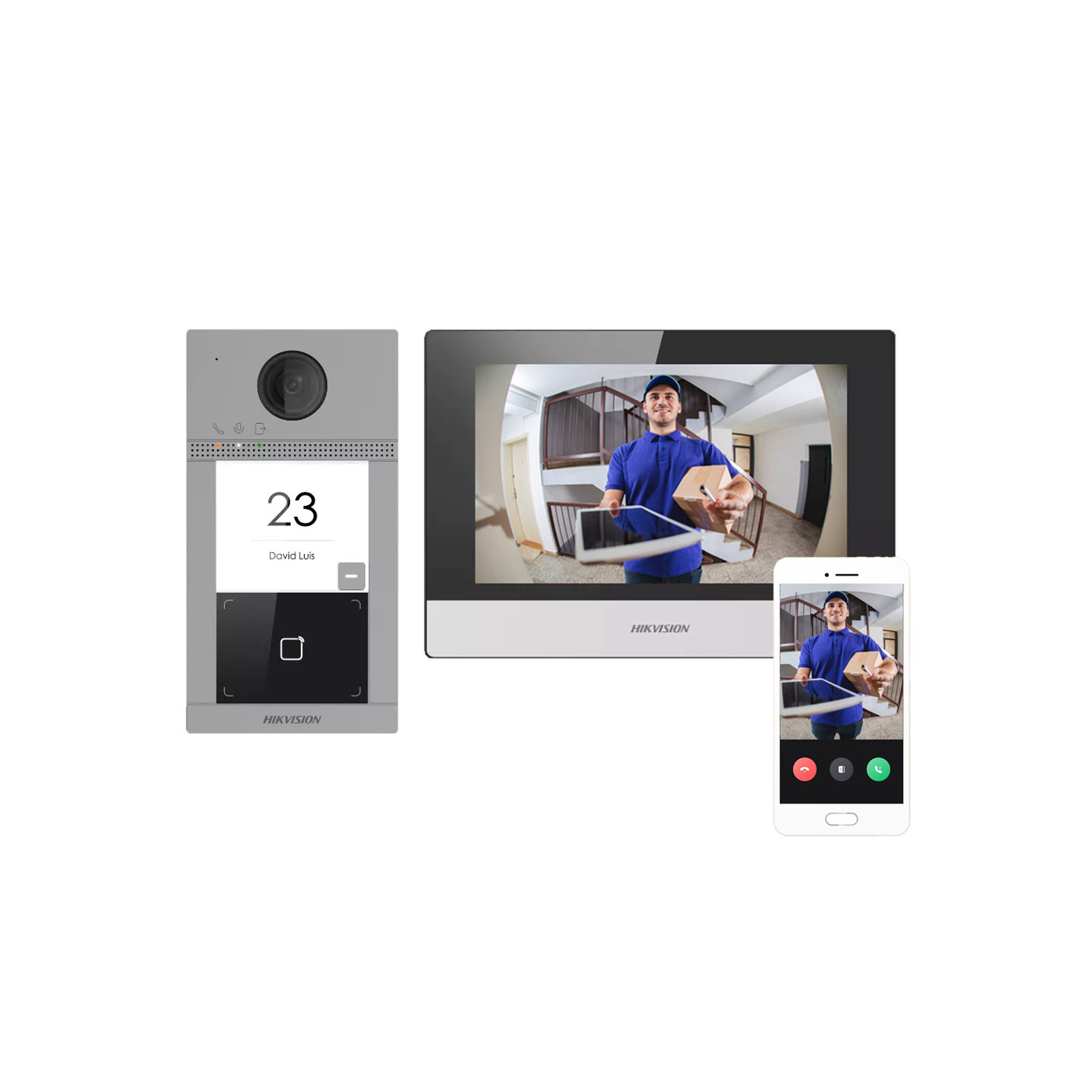

IP video intercom kit DS-KIS604-P(C)
0.00 EGP
+ Free Shipping- Standard PoE
- Noise suppression and echo cancellation
- Configuration remotely via Web
- Stores messages and captured pictures in the TF card
- Remote unlocking via the client software or the mobile client
Out of stock
